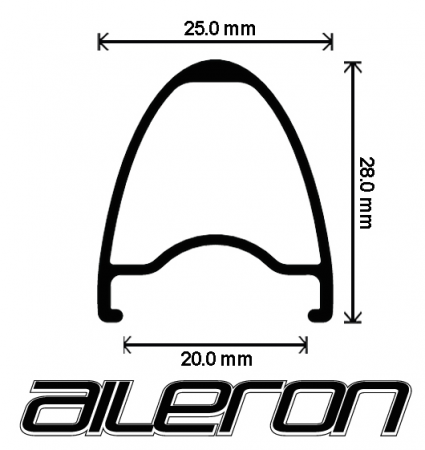

Features a disc specific elliptical profile designed with aerodynamics and weight as key factors. Specifically tuned to be aerodynamically paired with 23-28c road tires, though a 20mm inner width compliments even the most voluminous gravel and ‘cross tires.
Tubeless ready using 24mm Velotape.
Tight tolerances require the use of a low profile rim tape like Velotape to avoid tire installation issues. Veloplugs are not recommended on Aileron rims.
OPTIMAL TIRE WIDTH:25mm - 47mm
TIRE INTERFACE:Clincher / Tubeless
VALVE:Presta 41 - 55mm
BEAD SEAT DIAMETER (BSD):584
EFFECTIVE RIM DIAMETER (ERD):546
NON-MACHINED SIDEWALL DRILLINGS/COLORS:
32 spoke: Black
Use collapsible tabs for more detailed information that will help customers make a purchasing decision.
Ex: Shipping and return policies, size guides, and other common questions.
VELOCITY USA Aileron Rims 650b is my first 650b rim. Combined with DT Swiss 350 TA hubs, DT Swiss Evolution spokes, and WTB Byway 650b x 47c, it is a Smooth Operator!!! Very light, very fast rolling, aerodynamic rim and easy pedaling on up and downhill. Pricey but worth it. Many thanks! - Mon Casas
