FLAT BASE

Securely fix your mount to flat surfaces using one of our Rectangle Flat Hole Bases.

Choose between a 2 hole or a 4 hole base. An adhesive base is also available.

Both bases can be fixed to flat surfaces vertically, diagonally or horizontally.

Each base uses the universal AMPs hole spacing standard and the holes will accept 10G or M5 countersunk fasteners. If using the 4 hole base, we recommend using all 4 hole screws for the strongest connection.

A 10mm Spacers and x2 screws are supplied for connecting the spacer to a Quad Lock 360 HEAD or ARM.

Please Note: Screws are not provided for mounting the base to your required surface

What's Included:

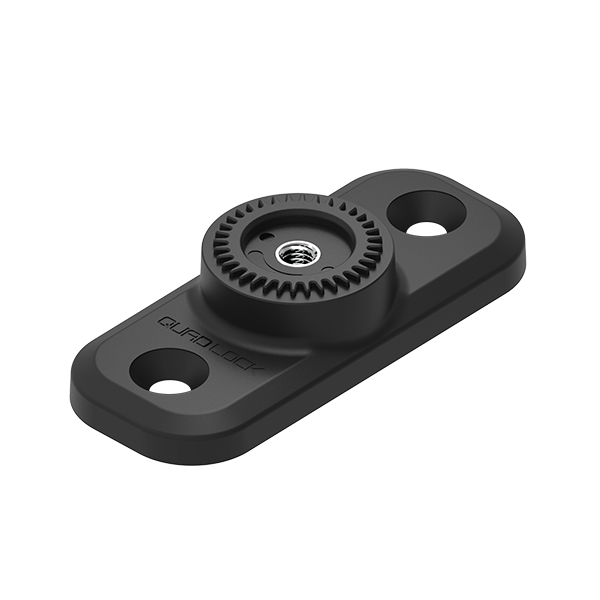

2 HOLE BASE

  • 1 x Flat Rectangle 2 Hole Base
  • 1 x 10mm Spacers
  • 1 x M5x30 Screw (for connecting Spacer to Lever Head or 360 Arm)
  • 1 x M5x45 Screw (for connecting Spacer to Weatherproof Wireless Charging Head)

4 HOLE BASE

  • 1 x Flat Rectangle 4 Hole Base
  • 1 x 10mm Spacers
  • 1 x M5x30 Screw (for connecting Spacer to Lever Head or 360 Arm)
  • 1 x M5x45 Screw (for connecting Spacer to Weatherproof Wireless Charging Head)

Specs:

Both Rectangle Bases are built with tough, nylon and use the universal AMPs hole spacing standard.

The holes will accept 10G or M5 countersunk fasteners.

2 HOLE BASE

  • 68.5mm (2.7") long x 28mm (1.1") wide x 14mm (0.55") high
  • AMPS Hole Pitch: 48.5mm (1.9")

4 HOLE BASE

  • 58mm (2.3") long x 50mm (2") wide x 14mm (0.55") high
  • AMPS Hole Pitch: 38mm (1.5") x 30mm (1.2")

FLEXIBLE ADHESIVE BASE

The Flexible Adhesive Base is suitable for mounting to flat or curved surfaces*

Using a super secure 3M™ Adhesive, the Flexible Adhesive Base has 4 tabs which can be bent to match the curved surface.

A 10mm Spacers and x2 Screws (1 x M5x30 and 1 x M5x45) are supplied for connecting the spacer to a Quad Lock 360 HEAD or ARM.

*Please Note: Not intended for severely curved surfaces (eg. 180 degrees)

What's Included:

  • 1 x Flexible Adhesive Base
  • 1 x 10mm Spacers
  • 1 x M5x30 screw (for connecting Spacer to Lever Head or 360 Arms)
  • 1 x M5x45 screw (for connecting Spacer to Weatherproof Wireless Charging Head)
  • 1 x Isopropyl Alcohol Wipe

Specs:

Made from tough, nylon construction, the Flexible Adhesive Base is 60mm x 60mm with a height of 18.3mm.

Each tab is 28mm wide and has 2 grooves, which are the bending points to allow grip to curved surfaces. These can be used in a concave or convex manner.

The adhesive used is the renowned, 3M™ Adhesive for extra strong grip.

Compatible with all Quad Lock 360 ARMs and HEADs.

Please Note: We recommend thoroughly cleaning the surface before applying the Flexible Adhesive Base with an alcohol-based cleaning substance.

Surface Guidelines for adhesive base:

The Flexible Adhesive Base can be attached to a number of different flat and curved surfaces, however, it is not intended for severely curved surfaces (eg. 180 degrees).

The 3M™ VHB Adhesive will adhere to smooth, non-textured, non-porous surfaces such as:

  • Un-coated Glass (eg. windshield)
  • Plastics such as PC, ABS, PVC, Nylon, Acrylic (eg. plastic car dash, console)
  • Metals
  • Fibreglass
  • Sealed wood

Recommended applications:

  • Interior of cars / 4x4
  • Boats
  • Caravans
  • Any low vibration element

It is not recommended for the following substrates:

  • Rubber, TPU, TPE
  • Leather
  • Silicone
  • Soft touch coating or paint
  • Low surface energy plastics such as Polypropylene (PP), Polyethylene (PE), Acetal, HDPE
  • Unsealed wood

Although possible, we do not recommend using the Flexible Adhesive Base on the following vehicles.

  • Motorcycles
  • Scooters
  • ATVs
  • Anything that causes high vibrations or receives constant exposure from outdoor elements

Please ensure the substrate is thoroughly cleaned and dry before applying the Flexible Adhesive Base.

The 3M™ VHB ™ tape is a single use adhesive and is not reusable.

Ensure mount position does not obstruct vehicle safety features such as airbags.

*We shall not be held liable for any accidents or loss that may occur due improper installation or mounting. Buyer's discretion is advised.
